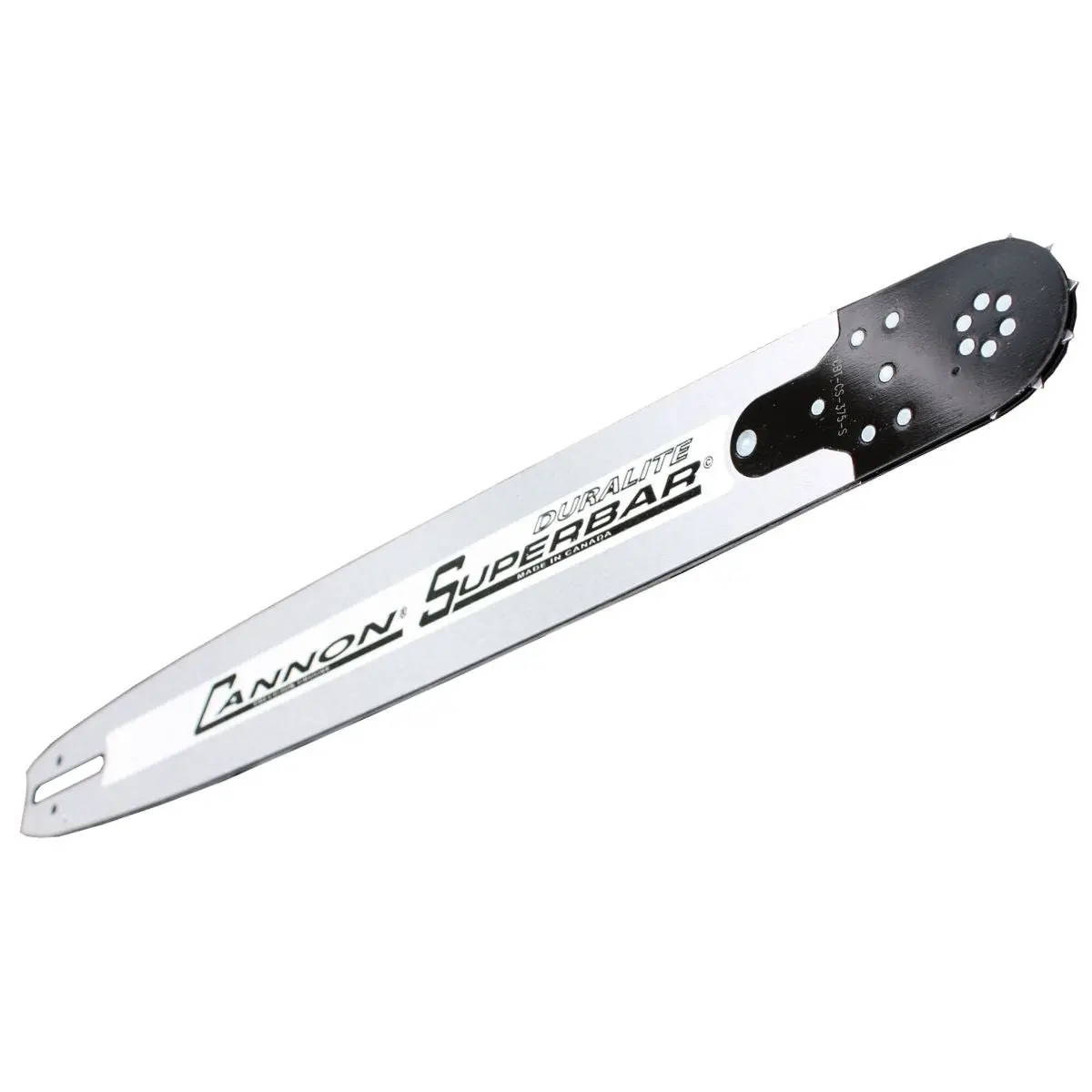

Cannon Duralite Superbar Lightweight Version

Description

Cannon DuraLite SuperBar is built for professional operators who want the strength and cutting accuracy of a solid steel bar, with improved balance and reduced weight where it matters most.

Whether you’re running a 16–20″ bar for fast handling and control, or stepping up into longer lengths where nose weight and fatigue become more noticeable, the DuraLite offers a clear advantage over a standard solid bar.

The DuraLite SuperBar begins life as a fully machined Cannon SuperBar. After grooving and flame-hardening the rails, weight is reduced by precision milling pockets on each side while retaining a solid steel core.

The centre section is perforated to form an I-beam style structure, maintaining exceptional rigidity while removing unnecessary mass from the bar body.

Flexible aluminium inserts are permanently bonded to the steel core using a specialised chemical bonding process, resulting in a bar that maintains SuperBar durability while weighing up to 25% less.

Manufactured in 🇨🇦 Canada by Cannon Bar Works, the DuraLite SuperBar improves balance, reduces fatigue, and maintains straight cutting accuracy across a wide range of bar lengths.

• Up to 25% lighter than a standard solid steel SuperBar
• Improved balance and reduced fatigue
• Flame-hardened rails for extended service life
• Precision-ground groove for accurate chain tracking
• Heavy-duty sprocket nose suited to professional saws

---

/* Cannon DuraLite – Mount boxes */ .csb-mounts { margin: 18px 0 6px; } .csb-mounts h3 { margin: 0 0 10px; font-size: 1.05em; } .csb-mount-grid { display: grid; grid-template-columns: repeat(auto-fit, minmax(240px, 1fr)); gap: 12px; } .csb-mount-box { background: #f3f4f6; border: 1px solid #e5e7eb; border-radius: 10px; padding: 12px 14px; line-height: 1.35; } .csb-mount-title { font-weight: 700; margin: 0 0 6px; font-size: 1em; } .csb-mount-meta { margin: 0; color: #111827; font-size: 0.95em; } .csb-mount-meta strong { font-weight: 700; } /* Fitment note (full-width, separate from mount cards) */ .csb-fitment-note{ margin:12px 0 0; background:#fafafa; border:1px solid #e5e7eb; border-radius:12px; padding:14px 16px; line-height:1.45; font-size:0.95em; color:#111827; } .csb-fitment-note strong{ font-weight:800; } .csb-fitment-note .csb-fitment-title{ margin:0 0 10px; font-weight:900; font-size:1.02em; } .csb-fitment-subtitle{ margin:10px 0 6px; font-weight:900; font-size:0.98em; } .csb-fitment-note ul{ margin:8px 0 10px 18px; } .csb-fitment-note li{ margin:0 0 6px; } .csb-fitment-note a{ font-weight:800; text-decoration:underline; } @media (max-width: 480px) { .csb-mount-box { padding: 12px; } .csb-fitment-note{ padding:12px 12px; } } /* ———————————————————— Cannon external black/orange CTA blocks (end of page) ———————————————————— */ /* Acknowledgement box */ .cbb-external-note{ background:#000; color:#fff; border-radius:14px; padding:16px 18px; margin:16px 0 14px; border:1px solid rgba(255,255,255,.10); box-shadow:0 10px 26px rgba(0,0,0,.30); font-size:0.96em; line-height:1.45; } .cbb-external-note strong{ font-weight:900; } .cbb-cta-grid{ display:grid; grid-template-columns:repeat(3, 1fr); gap:14px; margin:0 0 10px; } @media (max-width: 900px){ .cbb-cta-grid{ grid-template-columns:1fr; } } .cbb-cta-box{ background:#000; color:#fff; border-radius:14px; padding:16px; display:flex; flex-direction:column; border:1px solid rgba(255,255,255,.10); box-shadow:0 10px 26px rgba(0,0,0,.30); overflow:hidden; } .cbb-cta-head{ display:flex; gap:10px; margin-bottom:10px; } .cbb-cta-ico{ width:34px; height:34px; border-radius:10px; background:rgba(243,112,33,.14); border:1px solid rgba(243,112,33,.35); display:flex; align-items:center; justify-content:center; flex:0 0 34px; } .cbb-cta-ico svg{ width:18px; height:18px; fill:#f37021; /* Cannon orange */ } .cbb-cta-kicker{ margin:0; font-weight:900; letter-spacing:.06em; font-size:0.78em; text-transform:uppercase; } .cbb-cta-title{ margin:4px 0 0; font-weight:900; font-size:1.08em; } .cbb-cta-rule{ height:4px; width:110px; background:#f37021; border-radius:999px; margin:0 0 12px; } .cbb-cta-text{ margin:0 0 14px; font-size:0.95em; color:rgba(255,255,255,.92); line-height:1.45; } .cbb-cta-btn{ margin-top:auto; display:block; width:100%; text-align:center; background:#f37021; color:#fff; padding:12px 14px; border-radius:12px; font-weight:900; text-decoration:none; } .cbb-cta-btn:hover, .cbb-cta-btn:focus{ filter:brightness(1.08); text-decoration:none; } /* Mobile-only: reduce CTA button dominance */ @media (max-width: 900px){ .cbb-cta-btn{ width:auto; max-width:240px; margin:12px auto 0; padding:10px 16px; font-size:0.95em; border-radius:10px; } }

Mount options

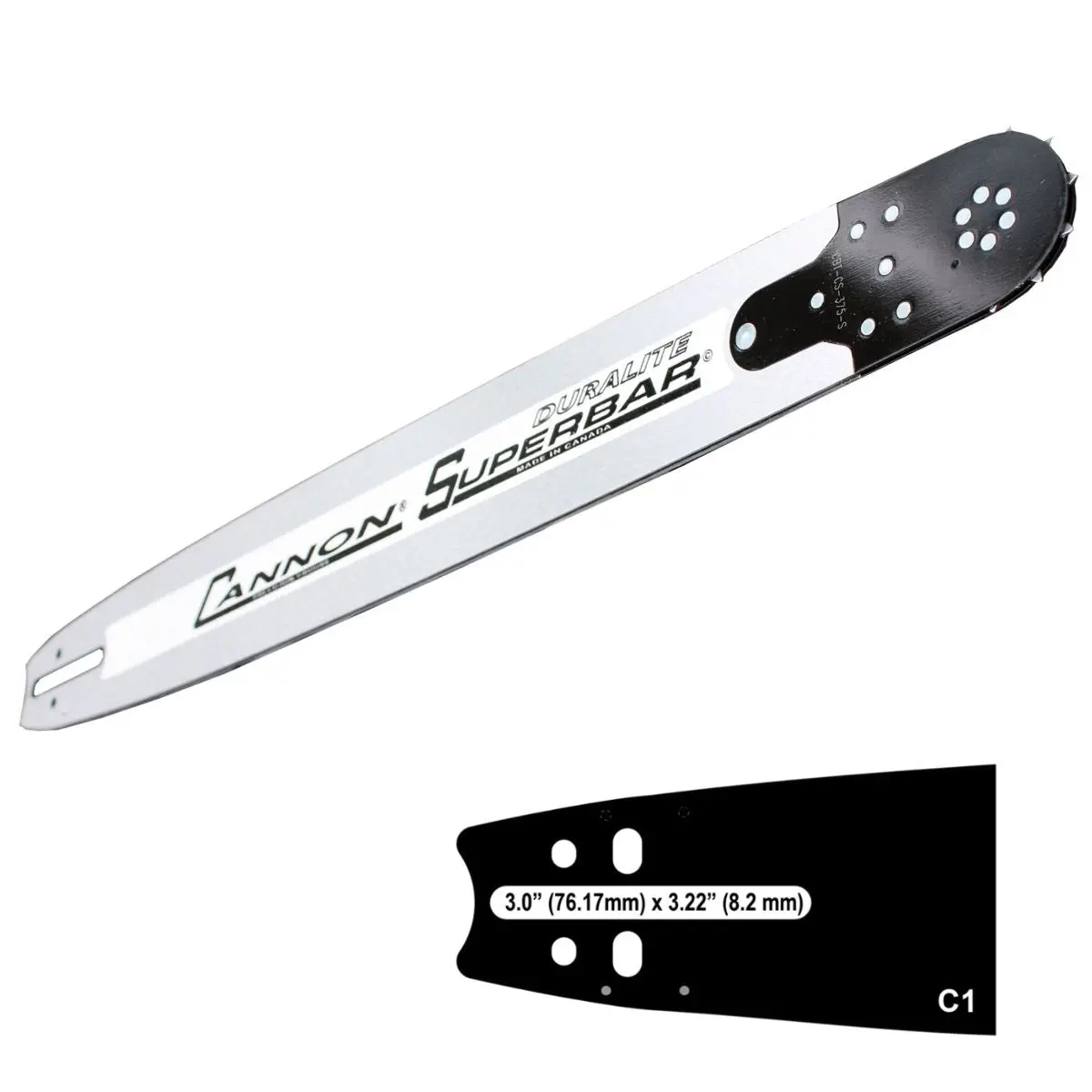

C1 Mount

Pattern: Combination mount (Oregon A041, K041, A061, A064, A074, A095, K095 / Stihl 3005)
Common use: Many saws under 60cc with 8.2 mm bar studs.

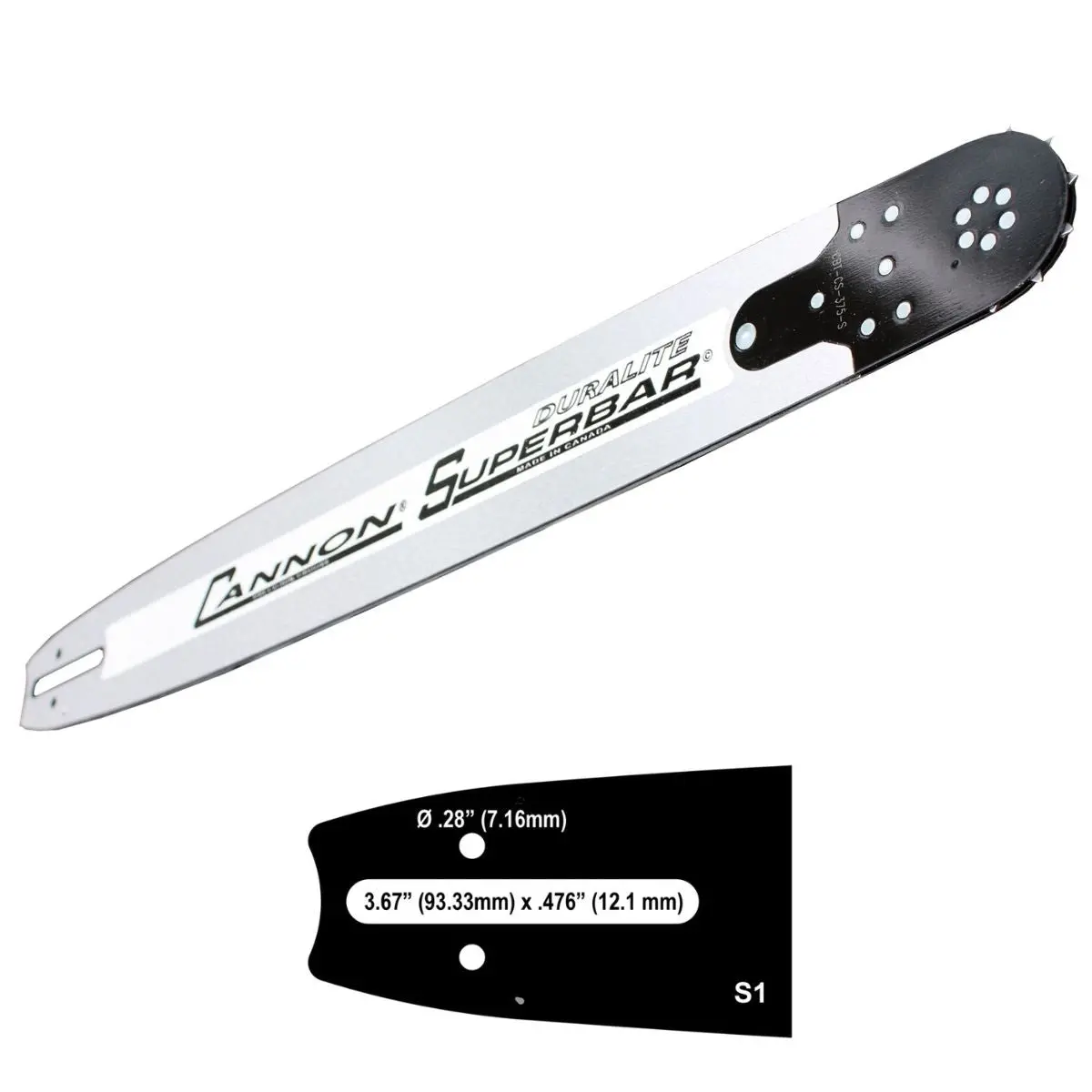

S1 Mount

Pattern: Oregon D025 / Stihl 3003
Common use: Stihl professional saws approx. 60cc–91cc with 12 mm bar studs.

Adaptor plate note (for S1 mount bars)

If your saw uses a different mount pattern, a Cannon adaptor plate may allow you to run an S1 (D025 / 3030) bar. Always confirm stud spacing before ordering.

Husqvarna (9 mm mount) — S1 → H1

• CBW-20030 — S1 to H1 — fits most Husqvarna (H1 / D009) 9mm mount saws (44mm centre-to-centre studs)
• CBW-20020 — S1 to H1 — fits Husqvarna 562XP (38mm centre-to-centre studs)
• CBW-20090 — S1 to H1 — fits Husqvarna 3120 (46mm centre-to-centre studs)

Echo (8 mm mount) — S1 → Echo

• CBW-20050 — S1 → P4 (Stihl 12 mm → Echo 8 mm) — 40mm — fits most Echo saws
• CBW-20040 — S1 → C1 (Stihl 12 mm → Echo 8 mm) — 36mm — fits Echo CS-450/P, CS-490, CS-500P, CS-530, CS-550P

View Cannon adaptor plates.

---

/* © Alphamare Pty Ltd (trading as Whites Forestry Equipment) ABN 85 621 535 822 */ .cbb-spec-wrap{ margin:18px 0 8px; } .cbb-spec-title{ margin:0 0 12px; font-weight:800; font-size:1.08em; } table.cbb-spec-table{ width:100%; border-collapse:separate; border-spacing:0; font-size:14px; border:1px solid #e5e7eb; border-radius:12px; overflow:hidden; background:#ffffff; } .cbb-spec-table thead th{ text-align:left; padding:10px 12px; background:#f1f5f9; border-bottom:1px solid #e5e7eb; font-weight:800; white-space:nowrap; } .cbb-spec-table tbody td{ padding:10px 12px; border-bottom:1px solid #e5e7eb; vertical-align:middle; background:#ffffff; } .cbb-spec-table tbody tr:nth-child(even) td{ background:#f3f4f6 !important; } .cbb-spec-table tbody tr:last-child td{ border-bottom:none; } @media (max-width:640px){ .cbb-spec-table thead{ display:none; } .cbb-spec-table, .cbb-spec-table tbody, .cbb-spec-table tr, .cbb-spec-table td{ display:block; width:100%; } .cbb-spec-table tr{ border-top:1px solid #e5e7eb; } .cbb-spec-table tbody td{ display:flex; justify-content:space-between; gap:12px; padding:10px 12px; border-bottom:1px dashed #e5e7eb; background:transparent !important; } .cbb-spec-table tbody td:before{ content: attr(data-label); font-weight:800; color:#111827; min-width:92px; } .cbb-spec-table tbody tr:nth-child(even) td{ background:#f3f4f6 !important; } .cbb-spec-table tbody td:last-child{ border-bottom:none; } }

Specifications (by variant)

Length	Mount	SKU	Pitch	Gauge
16″	C1	CSB-C1-16-50-DL-2	.325″	.050″
18″	C1	CSB-C1-18-50-DL-2	.325″	.050″
20″	C1	CSB-C1-20-50-DL-2	.325″	.050″
20″	S1	CSB-S1-20-63-DL-3	3/8″	.063″
24″	S1	CSB-S1-24-63-DL-3	3/8″	.063″
24″	S1	CSB-S1-24-63-DL-4	.404″	.063″
28″	S1	CSB-S1-28-63-DL-3	3/8″	.063″
28″	S1	CSB-S1-28-63-DL-4	.404″	.063″
32″	S1	CSB-S1-32-63-DL-3	3/8″	.063″
36″	S1	CSB-S1-36-63-DL-3	3/8″	.063″

Official Cannon resources:
The following links direct you to Cannon Bar Works’ official website, where you’ll find in-depth guides, fitment tools, and supporting product information.

Guide

How to choose a carving bar

Understand tip radius, pitch compatibility, and how to match the right carving bar to your saw and carving style.

Read guide

Tool

Cannon Bar Finder Tool

Quickly confirm bar mount and fitment by chainsaw make and model.

Use tool

C1 multi-fit

CBW-30000 mount gasket

All C1 multi-fit mount bars include a CBW-30000 gasket to help prevent oil leakage.

Read more
