Gb Protop Titanium Chainsaw Bar for .404 Pitch, .063 Gauge, HV D009 Profile

Description

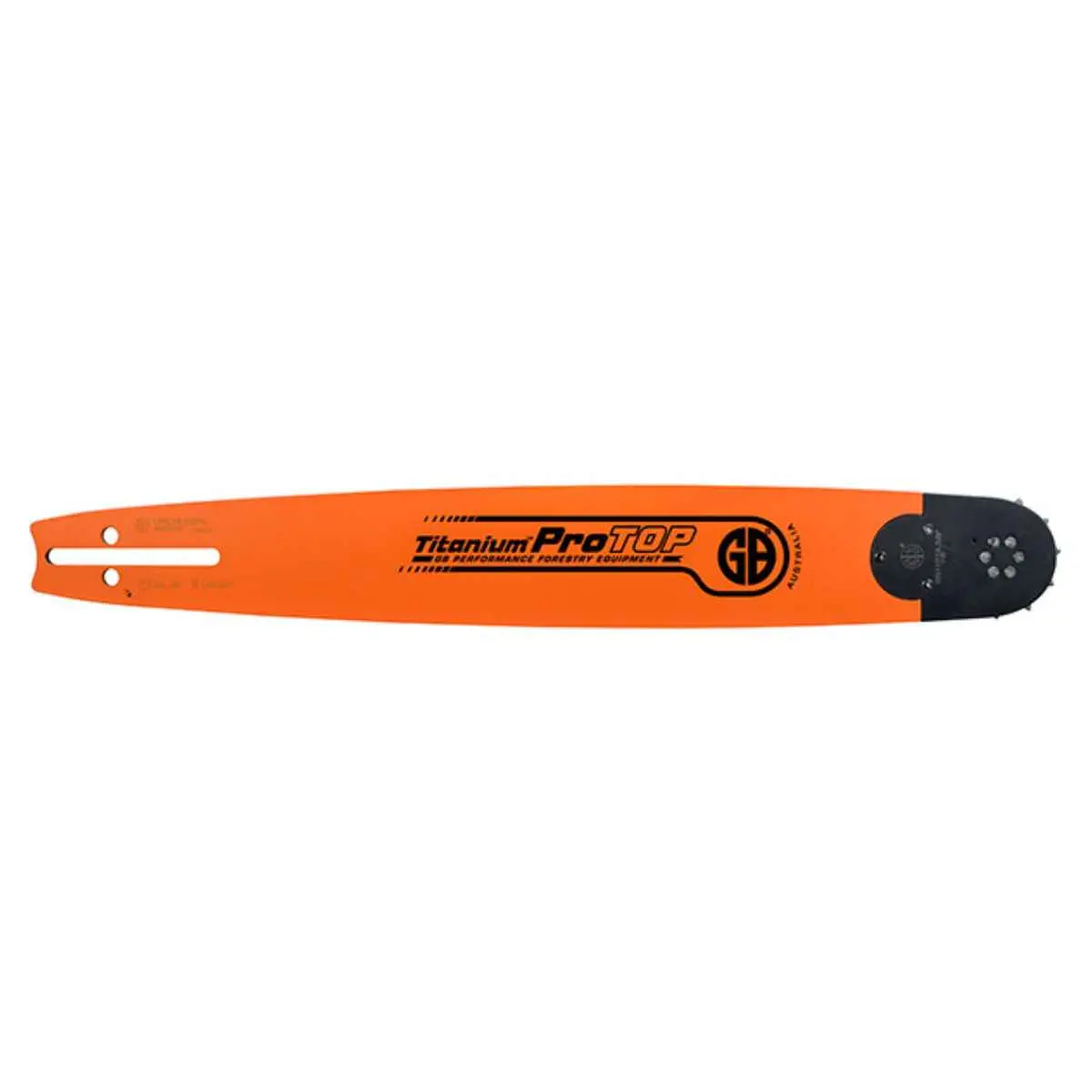

GB ProTop “Titanium” Chainsaw Bar — Husqvarna Large Mount (HV / D009), .404″ × .063″

Built for demanding professional users. ProTop “Titanium” bars pair a solid, heat-treated alloy-steel body with a replaceable sprocket-nose tip for smooth feed, stable tracking and long service life on high-power saws.

Key Benefits

• Low-friction cutting: Sprocket-nose tip reduces drag versus hard-nose bars.
• Durable rails: Heat-treated solid body resists groove and tip wear.
• Balanced handling: Confident control for bucking, felling and milling.
• Lower lifetime cost: Replace the nose assembly instead of the whole bar.

Technical Specs

• Pitch: .404″
• Gauge: .063″ (1.6 mm)
• Mount: HV / D009 (Husqvarna large-mount, 9 mm tail)
• Lengths: Select from the menu
• Body: Solid, heat-treated alloy steel (ProTop “Titanium” series)
• Tip: Replaceable sprocket nose

Fitment Checklist (Reduce Returns)

• Confirm your bar mount is HV / D009 (Husqvarna large-mount).
• Confirm your setup is .404″ pitch and .063″ gauge.
• Requires a .404″ drive rim/sprocket. Not compatible with 3/8″ sprockets or chain.

Important: Bar pitch must match the saw’s drive sprocket pitch. Mixing .404″ with 3/8″ can cause damage and void warranty.

Fits Models (Indicative)

Husqvarna: 272, 280, 281, 285, 288XP, 298, 3120XP, 362XP, 365, 371XP, 372XP, 380, 385XP, 390XP, 394, 395XP, 585, 592XP, 70, 77

Note: Model lists are indicative; some years/variants use different mounts. If unsure, check the code stamped on your current bar or contact us with your exact saw model and rim size.

.404″ Drive-Link & Weight Reference

Drive-link counts are sourced from GB Forestry Australia and assume a standard 7-tooth rim sprocket. Required DL may vary with sprocket size (rim or spur), saw model, bar wear and chain type. Always confirm against your existing chain.

table.gb-spec-table { width: 100%; max-width: 900px; border-collapse: collapse; text-align: center; } table.gb-spec-table th, table.gb-spec-table td { padding: 8px; border: 1px solid #888; font-size: 0.95em; } table.gb-spec-table thead tr { background-color: #e4e4e4; font-weight: 600; } table.gb-spec-table tbody tr:nth-child(even) { background-color: #f7f7f7; }

Part #	Length	Gauge	Drive Links	Weight (kg)
HV20-63VQ	20″	.063″	66	1.3
HV24-63VQ	24″	.063″	76	1.8
HV28-63VQ	28″	.063″	84	2.0
HV30-63VQ	30″	.063″	89	2.6
HV36-63VQ	36″	.063″	104	3.0
HV42-63VQ	42″	.063″	123	3.2

Lengths/weights are typical; minor variations can occur across production.

Maintenance Tips

• Keep bar groove and oil holes clean for proper lubrication.
• Grease the sprocket-nose bearings regularly.
• Flip the bar periodically to even rail wear.
• Set chain tension correctly to maximise bar life.
