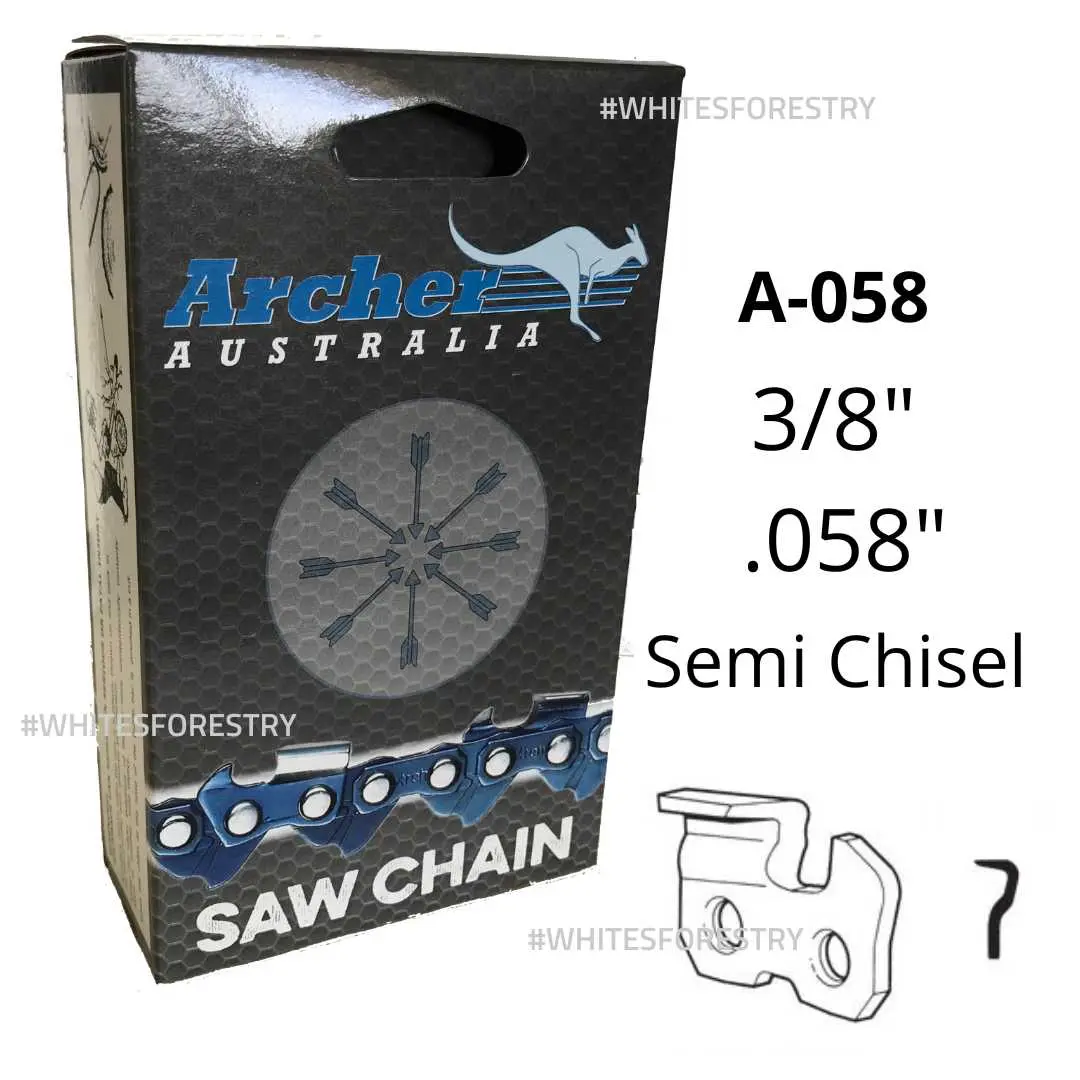

Archer Pro-Max Bar + Semi-Chisel Chain (3/8″ × .058″, HV/D009 • Husqvarna)
Australian Stock • GST Invoice • Fast Victorian Dispatch • Expert Support
Select your bar length in the menu. Each kit includes 1 × Archer Pro-Max guide bar and 1 × matched Semi-Chisel chain (3/8″ × .058″). Requires a 3/8″ pitch drive sprocket.
Easy-Handling Value for Home & Property Cutting
Archer Pro-Max bars are made from heat-treated, tempered steel with a replaceable sprocket nose and grease point for smooth running. They’re optimised for light, occasional use. For frequent, all-day work, explore our professional-grade ranges.
Bar & Chain Specifications
- Pitch / Gauge: 3/8″ × .058″ (1.5 mm)
- Mount: HV / D009 (Husqvarna large mount, 9 mm)
- Body: One-piece steel, heat-treated
- Nose: Replaceable sprocket nose with grease port
- Chain: Semi-Chisel (matched to selected length)
- Country of Origin: China
Size & Drive-Link Guide
| #Part | Length | Gauge | Pitch | Drive Links |
|---|---|---|---|---|
| 16A8-RN-HV | 16″ | .058″ | 3/8″ | 60 |
| 18A8-RN-HV | 18″ | .058″ | 3/8″ | 68 |
| 20A8-RN-HV | 20″ | .058″ | 3/8″ | 72 |
| 24A8-RN-HV | 24″ | .058″ | 3/8″ | 84 |
| 28A8-RN-HV | 28″ | .058″ | 3/8″ | 92 |
| 30A8-RN-HV | 30″ | .058″ | 3/8″ | 98 |
| 36A8-RN-HV | 36″ | .058″ | 3/8″ | 119 |
Drive-link counts are indicative and sized to each option at checkout.
Will It Fit?
- Your saw uses the HV / D009 Husqvarna large-mount pattern.
- Your drive sprocket is 3/8″ pitch.
- You require .058″ gauge chain sized to your chosen length.
Compatible Models (Indicative)
HUSQVARNA: 1100, 160, 162, 163, 180, 181, 185, 2100XP, 2101, 260, 261, 263, 266, 268, 272, 280, 281, 285, 288XP, 298, 3120XP, 362XP, 365, 371XP, 372XP, 380, 385XP, 390XP, 394, 395XP, 480, 562XP, 570, 572, 575XP, 585, 592XP, 61, 62, 65, 66, 70, 77 JONSERED: 2063, 2065, 2071, 2077, 2083, 2094, 2095, 2156, 2159, 2163, 2165, 2171, 2186, 625, 630, 635, 670 WEST COAST MAKITA: DCS6400, DCS6401, DCS7300, DCS7301, DCS7900, DCS7901 DOLMAR: PS6400, PS7300, PS7900 POULAN & POULAN PRO: 375, 395, 415, 425, 475, PP445, PP505, PP655 SHINDAIWA: 1091, 550, 575, 577, 680, 695, 757, 801, 901 SOLO: 603, 662, 665, 667, 670, 675, 680, 681, 690, 694 Baumr-Ag: SX92
Tip: Confirm your drive sprocket pitch is 3/8″ before ordering.
Setup & Care
- Match bar, chain and sprocket to the same pitch (3/8″).
- Set correct chain tension; keep bar groove and oil holes clean.
- Grease the nose sprocket periodically for smooth running.
- Flip the bar regularly to even rail wear; sharpen to manufacturer angles.
Why Choose Whites Forestry Equipment?
- Specialist advice from forestry professionals
- Australian stock: Fast dispatch from Victoria
- Quality guarantee: Genuine Archer products
- Business-ready: GST tax invoice and after-sales support
Important: Compatibility information is a guide only. Confirm mount, pitch, gauge and drive-link count for your saw and sprocket before ordering.
