Archer Pro-Max Bar + Semi-Chisel Chain (3/8″ × .063″, SN/D025 • Stihl)

Australian Stock • GST Invoice • Fast Victorian Dispatch • Expert Support

Choose your bar length in the menu. Each combo includes 1 × Archer Pro-Max guide bar and 1 × matched Semi-Chisel chain (3/8″ × .063″). Requires a 3/8″ pitch drive sprocket.

Great Value for Home & Property Cutting

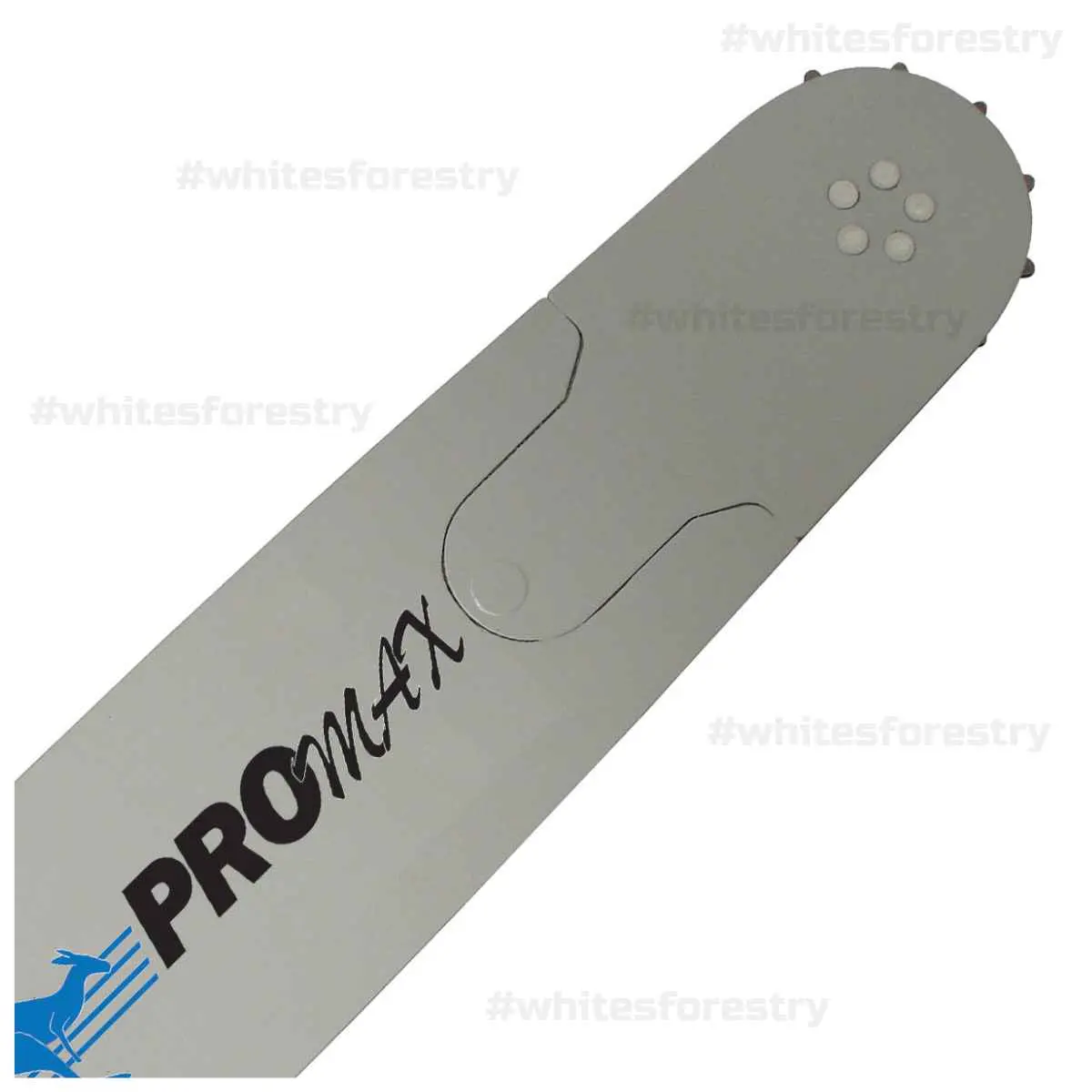

Archer Pro-Max bars are crafted from heat-treated, tempered steel with a replaceable sprocket nose and grease point for smooth running. Optimised for light, occasional use with easy handling and excellent value.

Bar & Chain Specifications

• Pitch / Gauge: 3/8″ × .063″ (1.6 mm)
• Mount: SN / D025 (Stihl 3003, 12 mm tail)
• Body: One-piece steel, heat-treated
• Nose: Replaceable sprocket nose with grease port

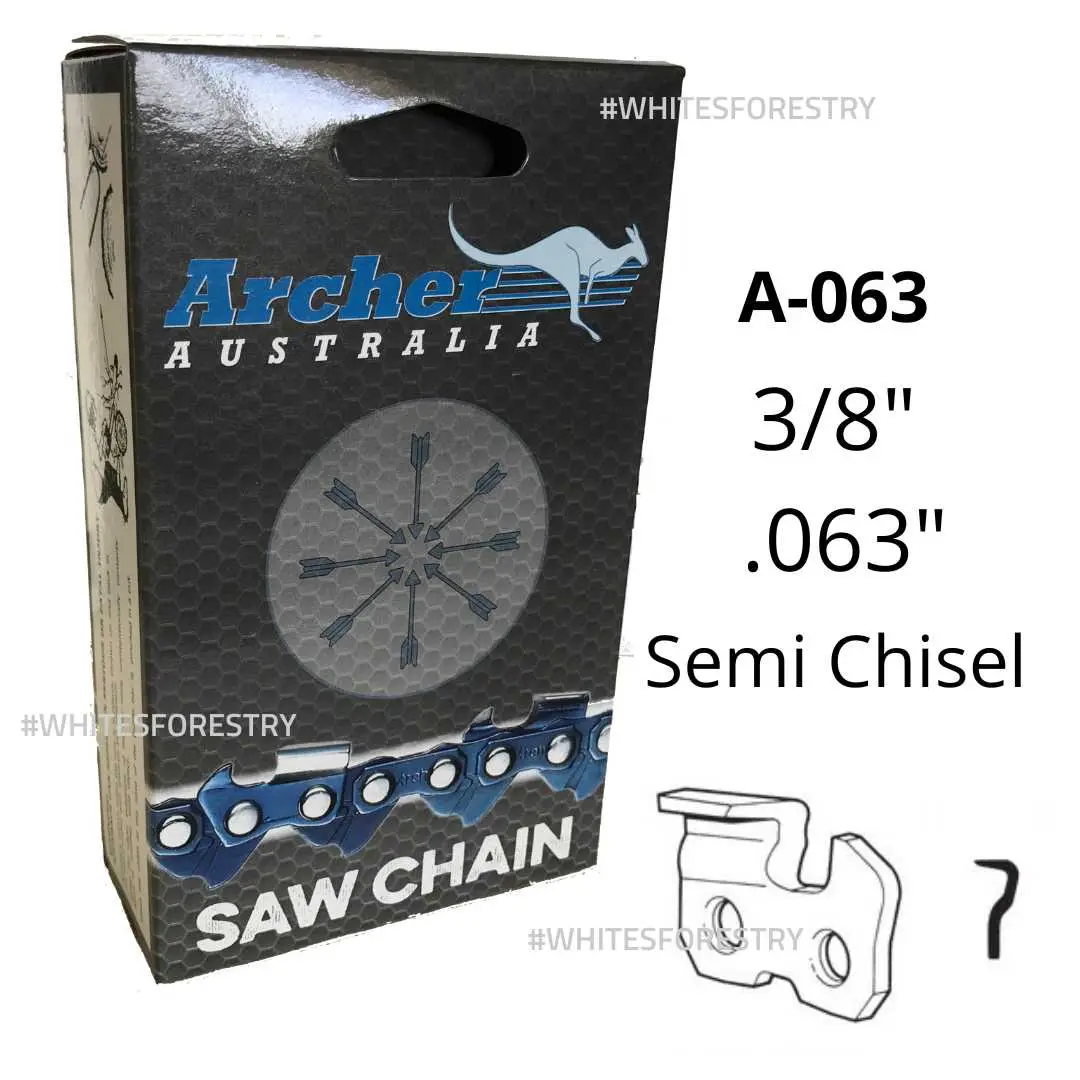

• Chain: Semi-Chisel (matched to selected length)
• Country of Origin: China

Size & Drive-Link Guide

#Part	Length	Gauge	Pitch	Drive Links
16A3-RN-SN	16″	.063″	3/8″	60
18A3-RN-SN	18″	.063″	3/8″	66
20A3-RN-SN	20″	.063″	3/8″	72
24A3-RN-SN	24″	.063″	3/8″	84
28A3-RN-SN	28″	.063″	3/8″	91
30A3-RN-SN	30″	.063″	3/8″	100
36A3-RN-SN	36″	.063″	3/8″	114

Drive-link counts are indicative and sized to each option at checkout.

Will It Fit?

• Your saw uses the SN / D025 Stihl bar mount (3003 pattern).
• Your drive sprocket is 3/8″ pitch.
• You require .063″ gauge chain sized to your chosen length.

Compatible Stihl Models (Indicative)

029, 030, 031, 032, 034, 036, 038, 039, 040, 041, 042, 044, 045, 046, 048, 500i, 056, 064, 066, FARMBOSS, MS280, MS290, MS291, MS310, MS311, MS360, MS361, MS362C, MS380, MS381, MS390, MS391, MS440, MS460, MS461, MS462C, MS500i, MS650, MS660, MS661

Tip: Confirm your drive sprocket pitch is 3/8″ before ordering.

Setup & Care

• Match bar, chain and sprocket to the same pitch (3/8″).
• Set correct chain tension; keep bar groove and oil holes clean.
• Grease the nose sprocket periodically for smooth running.
• Flip the bar regularly to even rail wear; sharpen to manufacturer angles.

Why Choose Whites Forestry Equipment?

• Specialist advice from forestry professionals
• Australian stock: Fast dispatch from Victoria
• Quality guarantee: Genuine Archer products
• Business-ready: GST tax invoice and after-sales support

Important: Compatibility information is a guide only. Confirm mount, pitch, gauge and drive-link count for your saw and sprocket before ordering.
