Tsumura Light Weight Guide Bar & Chain Combo – D025 Stihl 3/8″
A genuine Japanese Tsumura Light Weight guide bar matched with your choice of professional Carlton or Oregon chain — built for serious cutting performance in Australian hardwood.
The Tsumura Light Weight bar begins as a Light & Tough solid steel bar before undergoing precision machining. Staggered weight-reduction dove-tailed slots are cut into the bar body and filled with high-strength resin, reducing overall weight by approximately 20% while maintaining rigidity and rail durability.
Manufactured from a single piece of SKS-51 Japanese steel, this is a professional-grade guide bar designed for demanding farm, firewood and forestry applications.
✔ Why Choose This Combo
Lighter without compromise
Resin-filled weight-reduction slots deliver a noticeably better balance and reduced fatigue, while maintaining bar rigidity.
Japanese SKS-51 steel
One-piece solid construction for strength, rail durability, and accurate tracking under heavy load.
Matched professional chain
Choose Carlton or Oregon in semi or full chisel — supplied with the correct drive link count for your selected length.

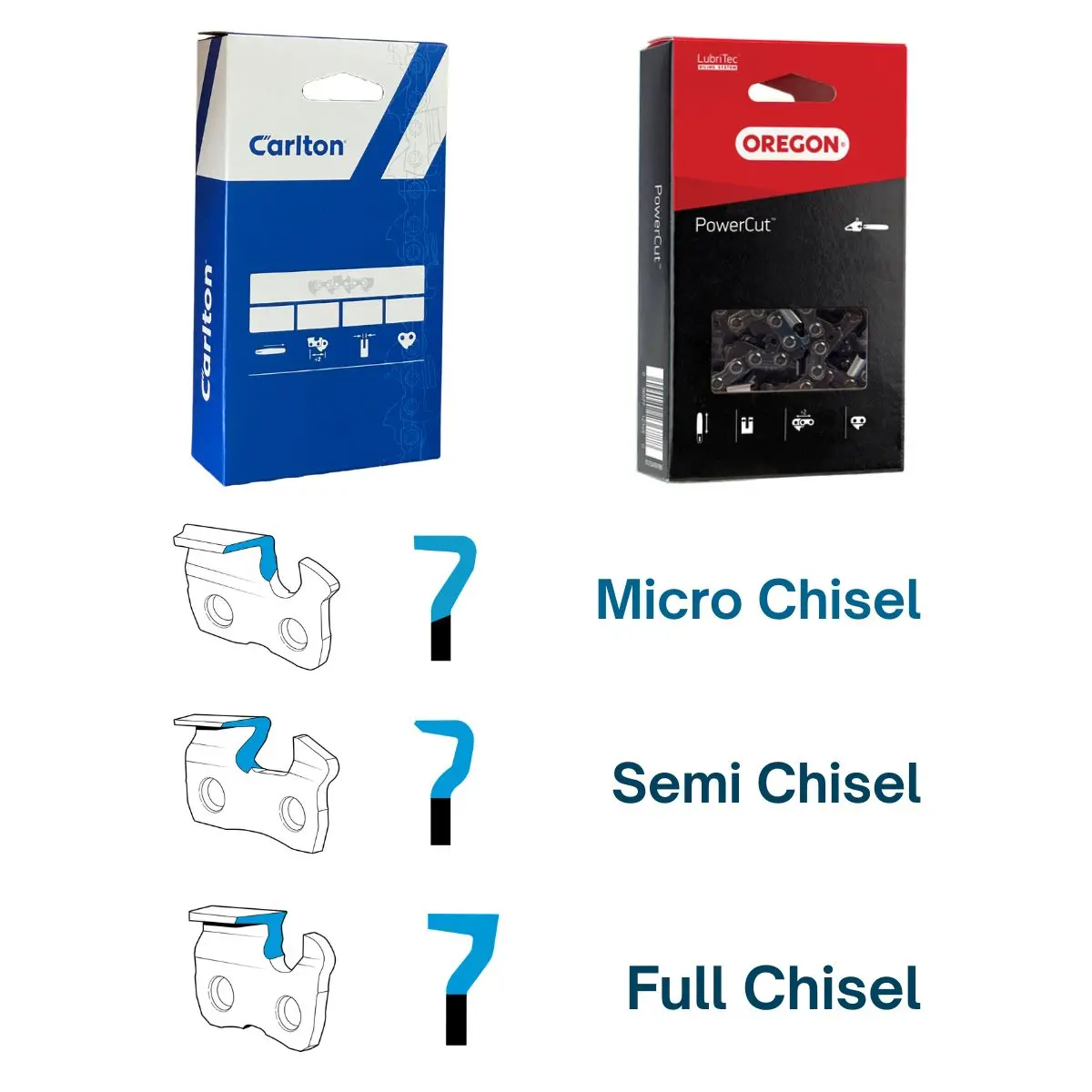

Choose Your Chain Type
| Chain | Cutter Type | Best For | Performance |
|---|---|---|---|
| Carlton A3EP | Semi Chisel | Dirty timber, firewood, farm use | Long edge life & forgiving sharpening |
| Carlton A3LM | Full Chisel | Clean hardwood, production cutting | Fast, aggressive cutting speed |
| Oregon 75DX | Micro Chisel | Smooth cutting, mixed conditions | Balanced speed & durability |
| Oregon 75EXL | Full Chisel | Clean timber, experienced operators | High cutting speed & reduced friction |
Not sure which to choose? For most users, we recommend Carlton A3EP Semi Chisel for the best balance of durability and performance in Australian conditions.
Bar Specifications
| Length | Drive Links | Part Number | Pitch | Gauge | Bar Weight |
|---|---|---|---|---|---|
| 18″ | 66 DL | 207FK4 | 3/8″ | .063″ (1.6mm) | 0.90 kg |
| 20″ | 72 DL | 208FK4 | 3/8″ | .063″ (1.6mm) | 0.99 kg |
| 24″ | 84 DL | 210FK4 | 3/8″ | .063″ (1.6mm) | 1.22 kg |
| 28″ | 91 DL | 234FK4 | 3/8″ | .063″ (1.6mm) | 1.47 kg |
| 30″ | 100 DL | 235FK4 | 3/8″ | .063″ (1.6mm) | 1.67 kg |
| 36″ | 114 DL | 238FK4 | 3/8″ | .063″ (1.6mm) | 1.86 kg |
Compatible Chainsaws
Mount: Oregon D025 / Stihl 3003
Common use: Stihl saws approx. 60cc–91cc with 12 mm bar studs.
Including models: MS310 through to MS661.
Important: Always confirm your saw uses 12mm D025 / 3003 mount and 3/8″ pitch drive sprocket before ordering.

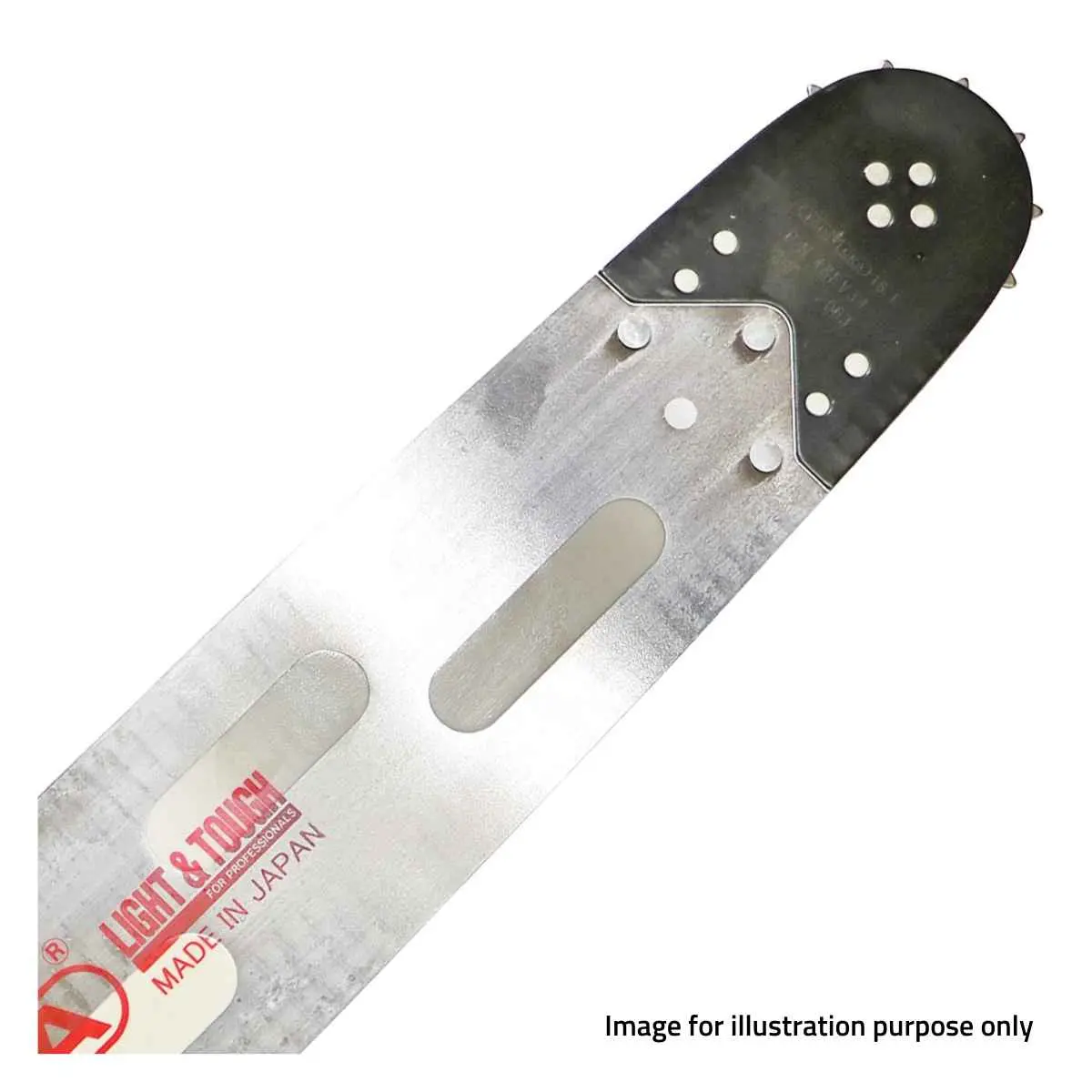

Image for illustration purposes only.
