Tsumura Light Weight Guide Bar & Chain Combo – D009 Husqvarna 3/8″

A genuine Japanese Tsumura Light Weight guide bar matched with your choice of professional Carlton or Oregon chain — built for serious cutting performance in Australian hardwood.

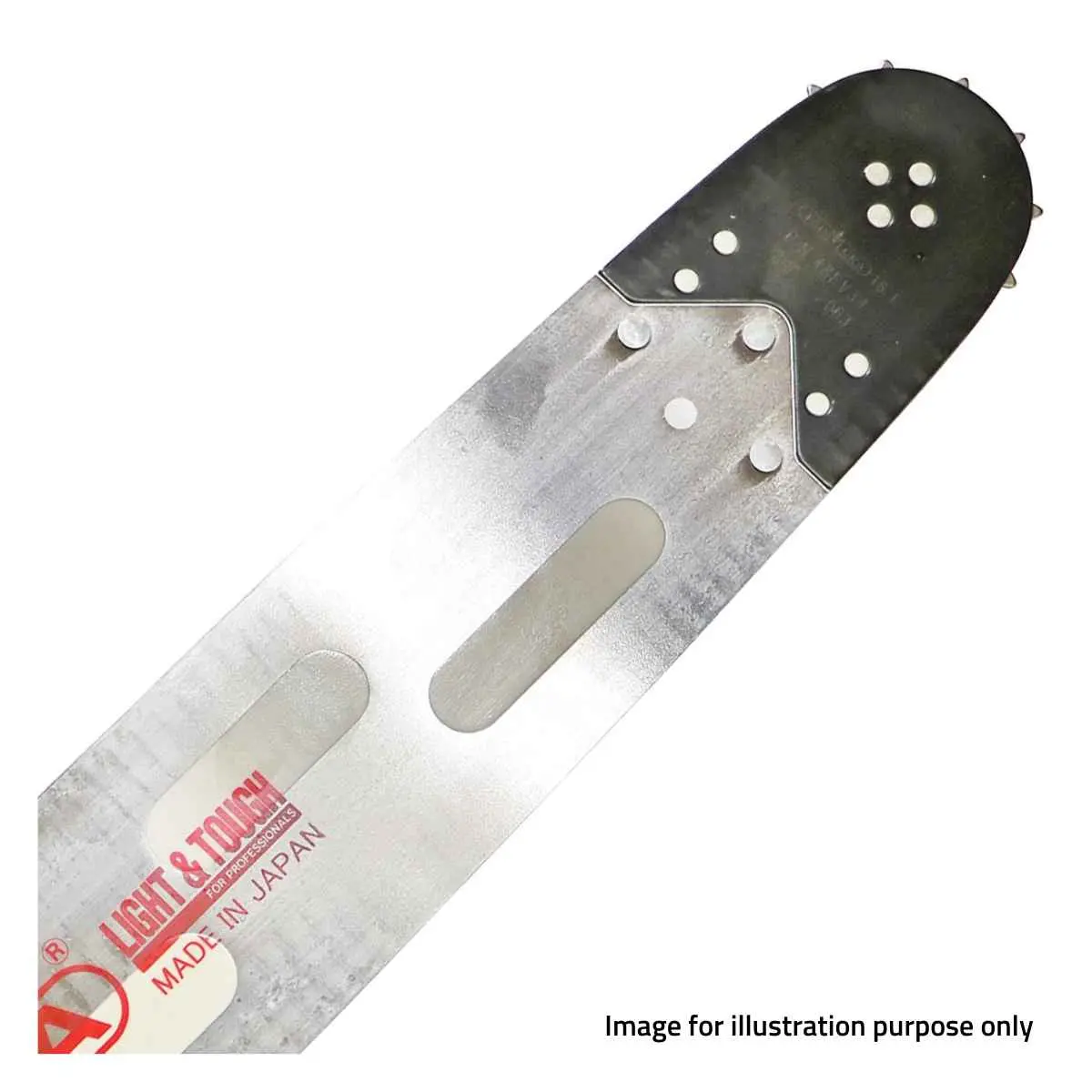

The Tsumura Light Weight bar begins as a Light & Tough solid steel bar before undergoing precision machining. Staggered weight-reduction dove-tailed slots are cut into the bar body and filled with high-strength resin, reducing overall weight by approximately 20% while maintaining rigidity and rail durability.

Manufactured from a single piece of SKS-51 Japanese steel, this is a professional-grade guide bar designed for demanding farm, firewood and forestry applications.

---

✔ Why Choose This Combo

Lighter without compromise

Resin-filled weight-reduction slots reduce fatigue while maintaining bar rigidity.

Japanese SKS-51 steel

One-piece solid construction for strength, rail durability, and accurate tracking under heavy load.

Matched professional chain

Choose Carlton or Oregon in semi or full chisel — supplied with the correct drive link count for your selected length.

---

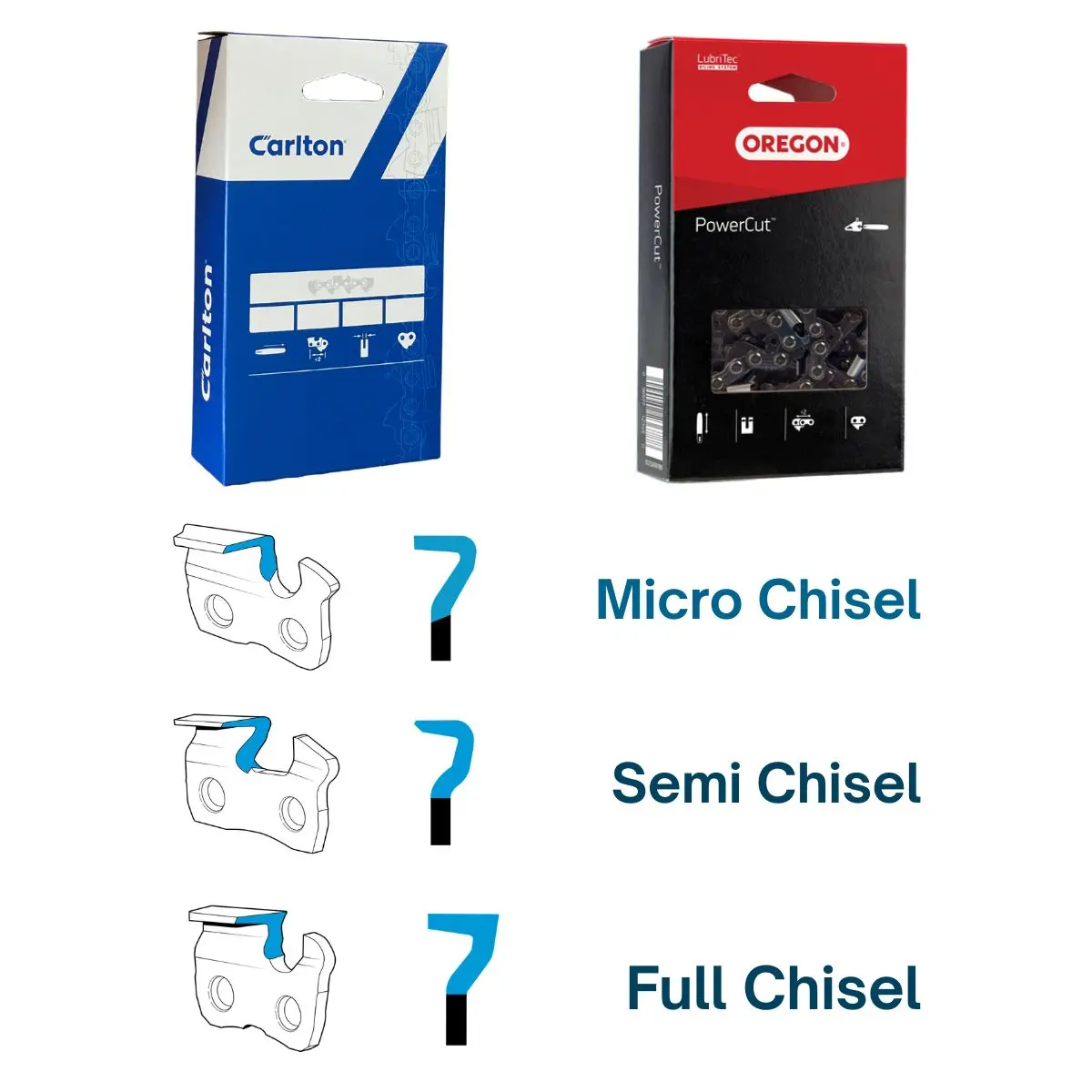

Choose Your Chain Type

Chain	Cutter Type	Best For	Performance
Carlton A2EP	Semi Chisel	Dirty timber, firewood, farm use	Long edge life & forgiving sharpening
Carlton A2LM	Full Chisel	Clean hardwood, production cutting	Fast, aggressive cutting speed
Oregon 73DX	Micro Chisel	Smooth cutting, mixed conditions	Balanced speed & durability
Oregon 73EXL	Full Chisel	Clean timber, experienced operators	High cutting speed & reduced friction

Not sure which to choose? For most users, we recommend Carlton A2EP Semi Chisel for the best balance of durability and performance in Australian conditions.

---

Bar Specifications

Length	Drive Links	Part Number	Pitch	Gauge	Bar Weight
20″	72 DL	407FK4	3/8″	.058″ (1.5mm)	0.99 kg
24″	84 DL	439FK4	3/8″	.058″ (1.5mm)	1.23 kg
28″	92 DL	410FK4	3/8″	.058″ (1.5mm)	1.50 kg
30″	102 DL	443FK4	3/8″	.058″ (1.5mm)	1.70 kg
36″	120 DL	446FK4	3/8″	.058″ (1.5mm)	1.96 kg

---

Compatible Chainsaws (D009 / Husqvarna 9 mm Large Mount)

Husqvarna:
61, 62, 65, 66, 70, 77, 160, 162, 163, 181, 185, 263, 266, 268, 272, 280, 281, 285, 288XP, 365, 371XP, 372XP, 380, 385XP, 390XP, 394, 395XP, 562XP, 565, 570, 572XP, 575XP, 585, 592XP, 2100XP, 2101, 298, 3120XP

Also fits select models from:
Jonsered, Dolmar, Makita, Shindaiwa, Solo and others using the D009 mount pattern.

---

Important: Always confirm your saw uses D009 mount and 3/8″ pitch drive sprocket before ordering.

Image for illustration purposes only.
